Do not compromise security for performance

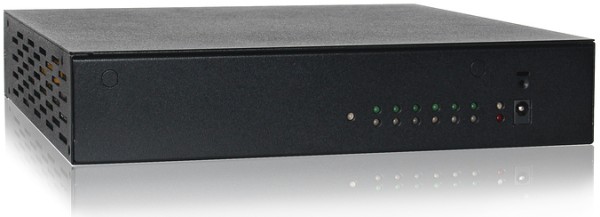

The Ugunssiena U51 solution is the most powerful desktop solution we offer and provides security without the performance degradation witnessed by users of many other firewall solutions. This allows for U51 appliance users to use full Internet performance and deploy the reliable protection even for fast internet connections with bandwidth exceeding 100 Mbps.


Product overview:

  • Intel® Rangeley Atom™ Processor SOC
  • Intel® QuickAssist Technology QAT embedded
  • Up to 16GB DDR3L SO-DIMM
  • 2 x Intel i210 GbE ports and 4 GbE ports from SoC Quad MAC
  • One bypass segment
  • One SATA and CFEX storage interface
  • One Mini-PCIe slot and reserved PCIex1 connector
  • RJ-45 type console and two USB ports
  • Rack mount option available
  • Gen 3.0 bypass segment

Feature Detailed Description:

CPU Board

  • Intel® Rangeley Atom™ Processor C-Series 2 cores 1.7GHz

System Memory

  • DDR3L 1333MHz SO-DIMM up to 16GB

VPN speed using SHA-1 hash algorithm and AES256 encryption

  • 127 Mbps

Ethernet Port

  • 2x PCIe GbE RJ45 and 4x SGMII GbE RJ45


  • 2x PCIe 2.0 B Portwell NIC slot, 1xstandard PCIe Slot


  • 1x bypass segments on i210

Storage Device

  • One 2.5″ HDD
  • CFEX socket onboard

Serial Port

  • One front access RJ45 for system console
  • One 2×5 pin-header


  • Power State, Storage Status, Ethernet Status, Ethernet Speed and Bypass


  • Dual USB2.0, front access


  • 40W 12V power adapter


  • W:210mm x D:210mm x H: 43mm
